CarbonPro bed has best-in-class cargo volume. Sidewalls are pushed out farther by the formability of carbon fiber composite that allows molding deep, complex shapes with variable thicknesses.
The GMC Sierra CarbonPro Editions will begin appearing at some dealerships this summer with a carbon fiber bed on the Sierra Denali 1500 and the Sierra AT4 1500. The purpose-built CarbonPro bed is the first application of its kind for carbon fiber composite and delivers best-in-class dent, scratch and corrosion resistance.
“CarbonPro is made of the same raw material found in seven-figure super cars and even aerospace applications,” said Duncan Aldred, vice president, Global GMC. “Coupled with offering the world’s first six-function MultiPro tailgate, the 2019 Sierra packs a one-two hauling punch for whatever the situation demands.”
The two premium back end segment firsts are just some of the options to appear on the 2019 GMC Sierra. The extra-cost ProGrade Trailering System with in-vehicle trailering app offers a connected trailering technology to bring more confidence to towing while the optional Rear Camera Mirror1 uses a mirror display that provides a wide, unobstructed view to help avoid common visual obstructions such as occupants or cargo. Also optional is a multicolor 15-inch (diagonal) Head-Up Display.
Claimed Benefits of the CarbonPro bed include:
- Strength, durability and scratch resistance: The carbon fiber composite material provides the most scratch, dent and corrosion-resistant pickup bed in the industry.
- Corrosion-resistance: Carbon fiber composite resists corrosion, helping the bed withstand weathering and maintain a premium appearance over the life of the truck.
- Reduced weight: The CarbonPro bed weighs 25% less than a traditional steel bed, removing roughly 60 pounds of vehicle mass. Its grained surface also negates the need for bed liners, potentially saving further vehicle mass.
- More volume: The CarbonPro bed design enables best-in-class cargo volume, increasing the already class-leading volume of the Sierra’s roll-formed steel bed by 1 cubic foot.

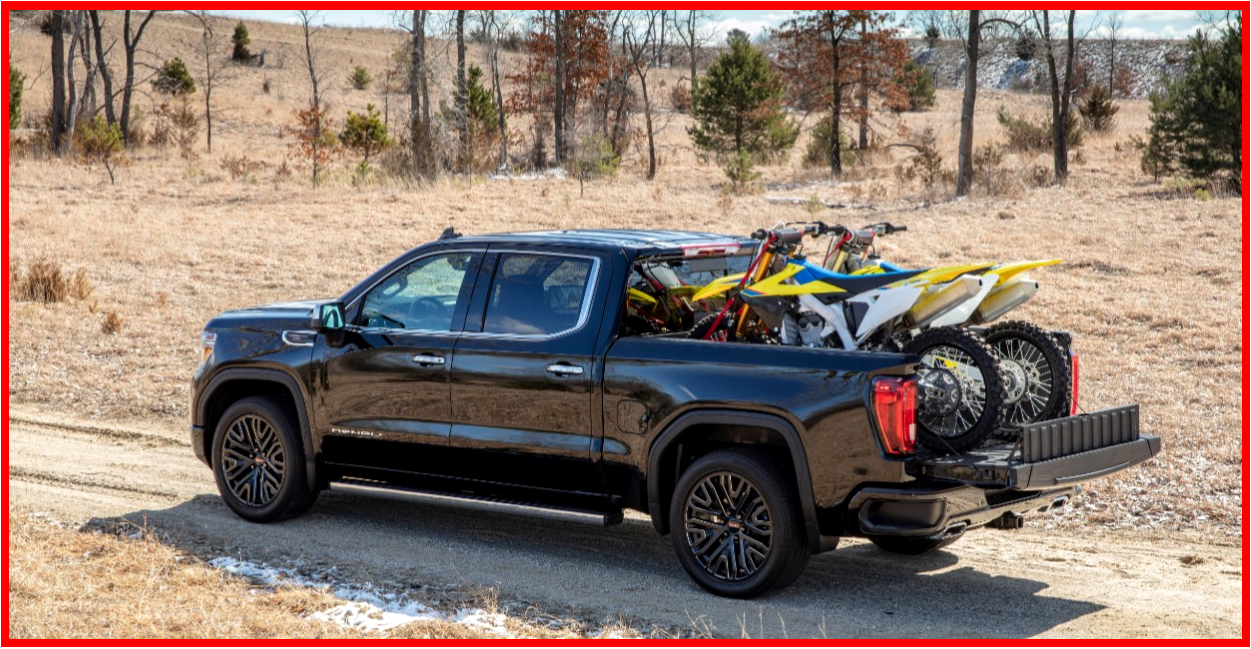

- More functionality: The CarbonPro bed features indentations specifically designed for tires of dirt and street bikes. Two additional tie-down locations are installed at the front of the bed.
Validation Testing
- Drop tests: Large and heavy loads were repeatedly dropped on the CarbonPro bed to replicate extreme use scenarios. Testing included dropping cinder blocks, 1800-pound loads of gravel and 450-pound water-filled steel drums from varying heights.
- Corrosion test: CarbonPro was subjected to corrosion testing but carbon fiber composite is naturally resistant to corrosion.
- Snowmobile test: A snowmobile with metal studs on the track was driven into the bed and accelerated at full throttle with a 250-pound rider on board with only minimal scratching evident on the bed.
- Extreme temperature testing: Validation work was performed in Yuma, Arizona, and Kapuskasing, Ontario, to help ensure CarbonPro holds up in unforgiving environments.
- Generator test: High heat exposure involved aiming the exhaust from a portable generator directly at the corner of the bed to ensure heat and vibration would not degrade the bed.
Form Helps Function
The CarbonPro bed offers best-in-class cargo volume with its sidewalls being pushed out farther, made possible by the formability of carbon fiber composite that allows molding deep and complex shapes with variable thicknesses. Like the steel bed, the CarbonPro bed provides the ability to slide a 2-inch by 6-inch wooden divider into pockets in the bed wall for cargo organization and separation.
Purposefully grained corrugation optimizes traction and cleanup, with more aggressive graining at the tops of the corrugation to help increase traction in wet weather and a smoother grain at the bottoms of the corrugation for easy dirt and debris removal.
The carbon fiber composite bed does not need to be painted, since the composite material creates a premium surface and is UV stable.
“The bed is the working end of a truck; it’s what brings buyers to the segment,” said Tim Herrick, executive chief engineer, Full-Size Trucks, General Motors, “Loaded with motorcycles, snowmobiles or dirt bikes, CarbonPro in the 2019 GMC Sierra is sure to impress with its strength, space and innovation.”
Additional Details
- Spray-in bedliner not needed: Because carbon fiber composite is exceptionally durable, a spray-in bedliner is not necessary to help prevent damage and therefore will not be packaged on models with the CarbonPro The composite material is rugged yet nonabrasive.
- Rear wheelhouse liners not needed: Because of CarbonPro’s increased dent resistance versus aluminum or steel, no wheelhouse liner is installed from the factory.
- Payload increase: Models equipped with the CarbonPro bed offer an increase in payload over a steel bed due to the mass savings of carbon fiber composite. Payload for these models is at least 59 pounds higher, depending on the configurations and equipment.
Availability
Sierra CarbonPro Edition makes a limited debut for the 2019 model year and is available for both the Sierra Denali 1500 and the Sierra AT4 1500. CarbonPro will be available in greater quantity on both trims for the 2020 model year.
